The Metal Mashup: May Vol. 4 2025

Upgrade Your TIG Game: Pro Tools & Insider Tips

Looking to step up your TIG (Tungsten Inert Gas) welding game? These advanced techniques can bring your welding skills to the next level, improving the quality and consistency of your welds without the need to rework them. Arc-Zone has the tips and tools.

WELD LIKE THE PROS

5 Advanced TIG Welding Techniques for Perfect Welds

Pulse TIG Welding:

Commonly used in the aerospace and automotive industries, pulse TIG welding alternates between high and low current to better control heat input. This technique allows for better control which results in cleaner welds and therefore a better look. This technique is especially beneficial for thinner metals since it prevents warping.

Precision Torch and Arc Control:

The key to a cleaner weld comes down to control and torch positioning. The sweet spot is an angle of 15-20 degrees with an arc distance of 1/16 to 1/8 inch. This creates an appropriate angle to heat the depositing material, and it’s the right distance to develop an arc while keeping the weld within the coverage of shielding gas, preventing contamination from the surrounding air.

Meticulous Tungsten Electrode Preparation:

A weld can only be as good as the Tungsten electrode. If your electrode is damaged, contaminated, or blunt, your weld will suffer because the arc will be insufficient. Always grind your tungsten electrode prior to welding, using a quality tool like the Cordless Sharpie DX™. Ensure you are grinding it in the longitudinal direction, running it lengthwise to prevent contamination. During a weld, never let the tungsten rod make contact with the metal being joined or the filler material so as to avoid tungsten contamination.

Controlled Heat Input and Power Management:

Too much heat can cut through or damage the metal you’re welding while not enough heat can lead to an insufficient or weak weld. Managing the current with a foot pedal allows you to find the proper heat input throughout a weld. Also tapering off towards the end produces a more aesthetically pleasing weld.

Cleanliness and Joint Preparation:

A clean weld is only possible with clean conditions. This means preparing the joint and keeping it free of any, and we mean “any,” debris. Use a degreaser on the metal and use a metal brush to scrub the area thoroughly. Make sure to deburr the edges and wipe the surfaces with acetone before welding.

GET THE RIGHT GRIND ON YOUR TUNGSTEN ROD

Important Updates in TIG Welding

New Tech and Methods for TIG Welding:

The welding industry is beginning to see new advances like robots that assist in the welding process and handheld laser welders. The advances are improving precision, but they are also making welding more portable and give welders an opportunity to learn in augmented reality.

READ FULL ARTICLE →

Where TIG Welding Will Be in 2033:

The DC TIG welding market is growing. Thanks to the prospects of space travel as well as the growing aeronautical market, DC TIG welding is growing in popularity across the globe. But what other markets will grow thanks to TIG welding by 2033?

READ FULL ARTICLE →

The Basics on Tungsten Electrodes:

Which type of tungsten electrode is the best for your welding? These five types of tungsten rods are intended to work with different metals and temperatures.

READ FULL ARTICLE →

SEE THE PRECISION OF THE CORDLESS SHARPIE DX™

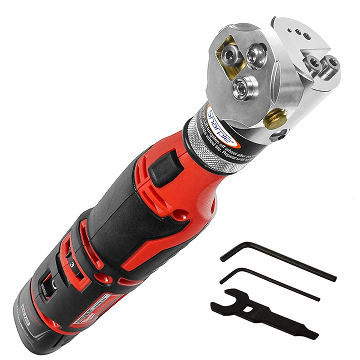

Cordless Sharpie DX™ Tungsten Grinder

The Cordless Sharpie DX™ Tungsten Grinder is a portable grinder that can be brought to any job site. Its diamond wheel creates consistent reliable grinds at angles between 15° and 45°. The wheel is also enclosed to ensure safety no matter where you bring it.

This grinder has a built-in cut off and scoring option making it easier to grind off only the necessary areas of the electrode. You can also personalize it with 16 different color combinations.

IMPROVE THE QUALITY AND LIFESPAN OF YOUR TUNGSTEN ELECTRODE

BLOG

How to Maintain and Sharpen Your Tungsten Electrodes for Precision Welding?

The Best Plasma Cutters for Automotive Fabrication

Cleaning and sharpening your tungsten electrode is crucial to the best quality welding. We break down the best methods to keep your electrode free of contamination and debris.

READ FULL POST HERE →

Best Practices for Welding in Extreme Environments

Exploring New Welding Technologies and Trends

You may not always find yourself in an environment that is ideal for welding peacefully, but we have some best practices to help you perform quality welding in the toughest places.

READ FULL POST HERE →

The Ultimate Guide to Choosing the Right Welding Torch for the Job

Every job is different and if you want to get the job done right, you’ll need the right torch. We break down the different torches, their benefits, and their shortcomings so you can get the right torch for your welding job.

READ FULL POST HERE →
